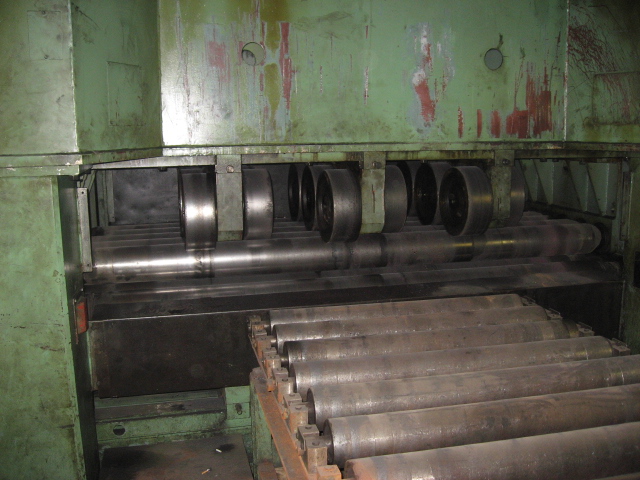

Sheet metal levelling machine UBR 16x2500/1-10
Click here for more photos

Reference No. 510302
Manufacturer VEB Blema Gotha
Model UBR 16x2500/1-10
Max sheet width 2500 mm
Way of traverse -10... +40 mm
Speed of traverse adjustment per 1 min 60 mm
Main motor power 57 kW
Other motors 2x18,5 kW; 2x1,1 kW
Machine weight 46110 kg

Sheet thickness:
 -Max: 16 mm
 -Min: 6 mm
Straightening rollers:
 -Total units: 11
 -Top rollers: 5
 -Bottom rollers: 6
 -Diameter of rollers: 180 mm
 -Speed per 1 min: 10 m
No of supporting rollers:
 -Top: 18
 -Bottom: 21
