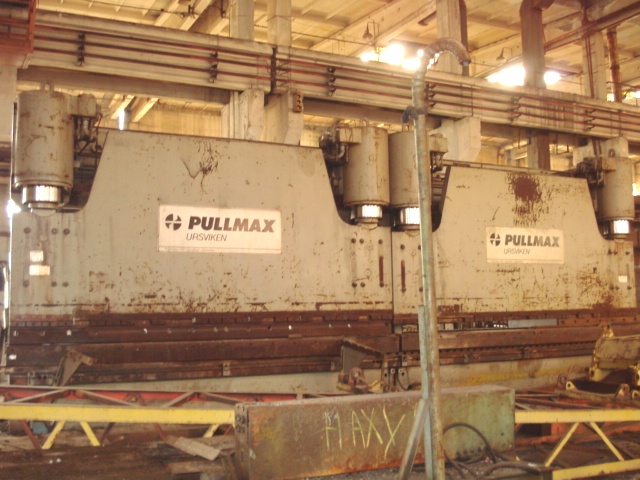

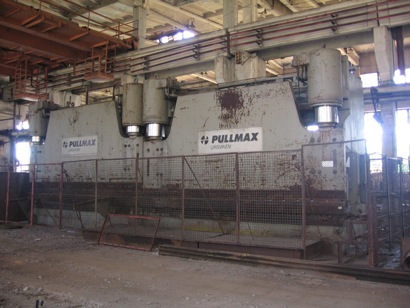

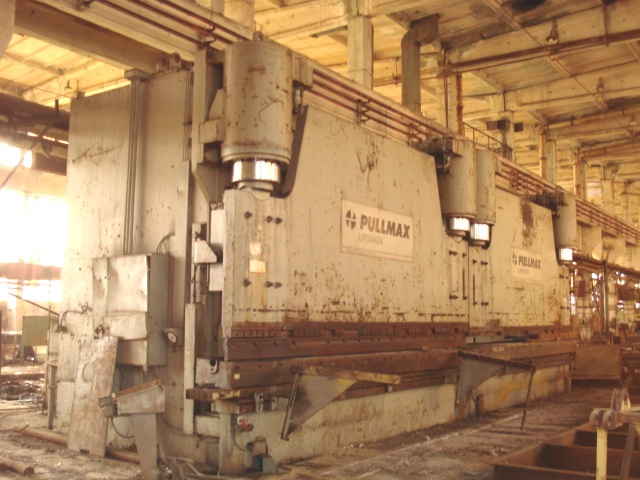

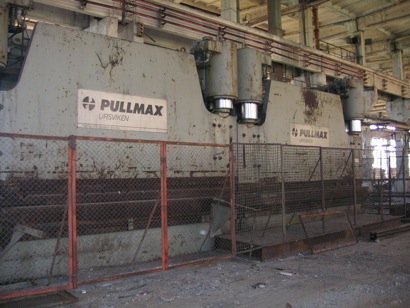

1600ton Pullmax Press brake
Click here for more photos

Reference No. 310201
Manufacturer Pullmax ursviken, built 1985
Model EKP-M 1600 2x6.1/5.2, 16000kN, Hydraulic press
Working length 12200mm(tandem 2x1600mm)
Working height 800mm
Table width 400mm
Internal distance btw the ends 5100mm
Stroke length 500mm
Pressing force 16000kN
Weight 2x108,000kg
High speed 60mm/s
Pressing speed 5mm/s
Return speed 45mm/s

Electric Data
Rated voltage 3-phase 380 V 50 Hz
Contactor voltage: 110 V
Valve and relay voltage: 24 V


1600ton Pullmax Press brake
  Reference No. | 310201
  Manufacturer | Pullmax ursviken, built 1985
  Model | EKP-M 1600 2x6.1/5.2, 16000kN, Hydraulic press
Click Here for more Info
CMU CNC press brake
  Reference No. | 310302
  Manufacturer | CMU
  Model | 1 ES 300-42
Click Here for more Info
