| Reference No. |
120205 |
| Manufacturer |
Hasenclever, Germany |
| Model |

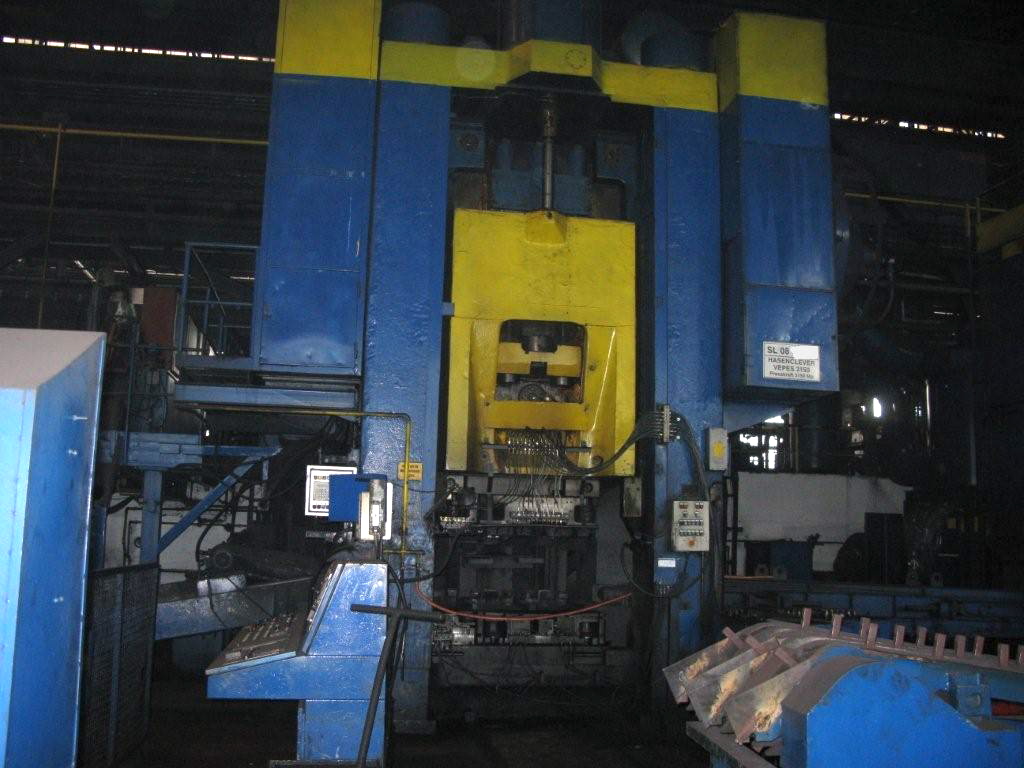

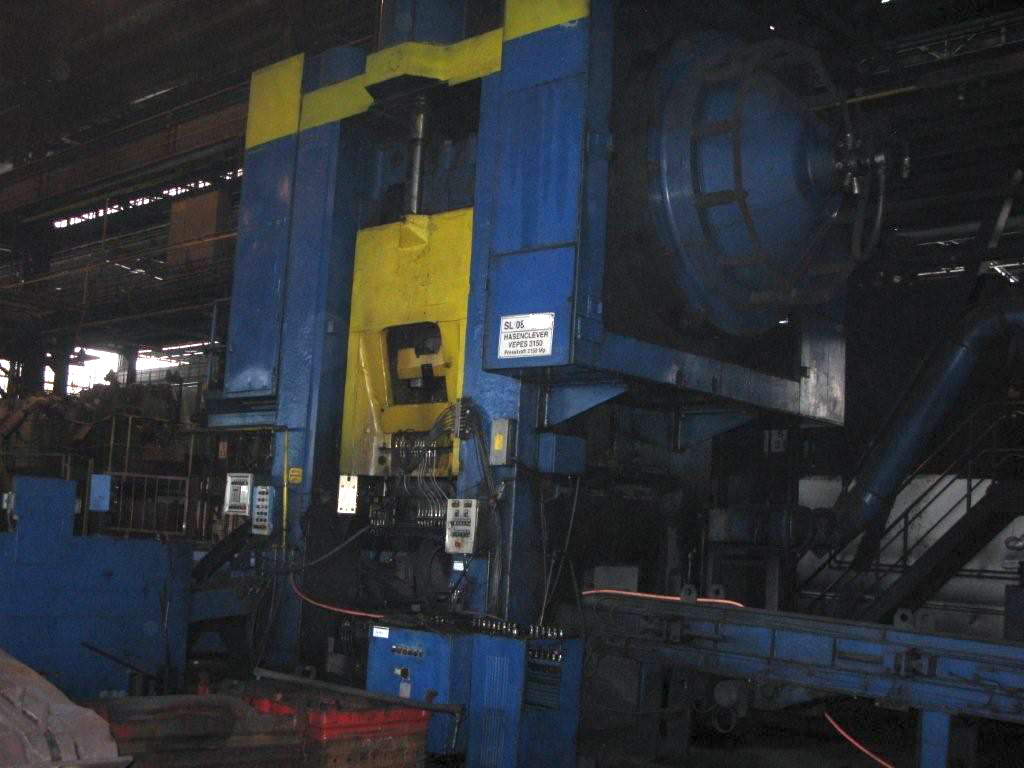

VEPES 3150 |
|
| |
Specifications;
Built 1982 - Fully rebuilt 2005
Table surface: 1700x1500mm
Stroke: 355mm
Ram adjustment: 24mm
Power of main motor: 130kw

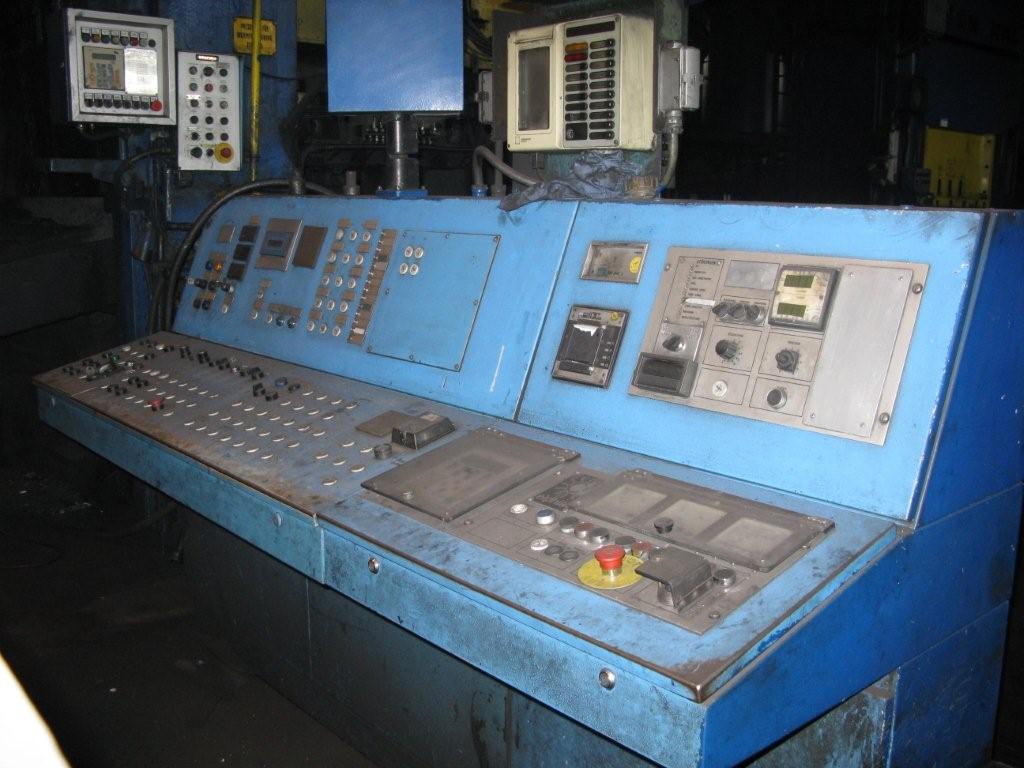

Control: SPS - Control Siemens Simatic S5
2-Axis digital display
2. Reducer roll
Model: ARWS 1A
Built: 1991
Roll adjustment: 17mm
Roll width: 665mm
Max. thickness of material: 75mm
Weight of machine: approx. 12.5tons

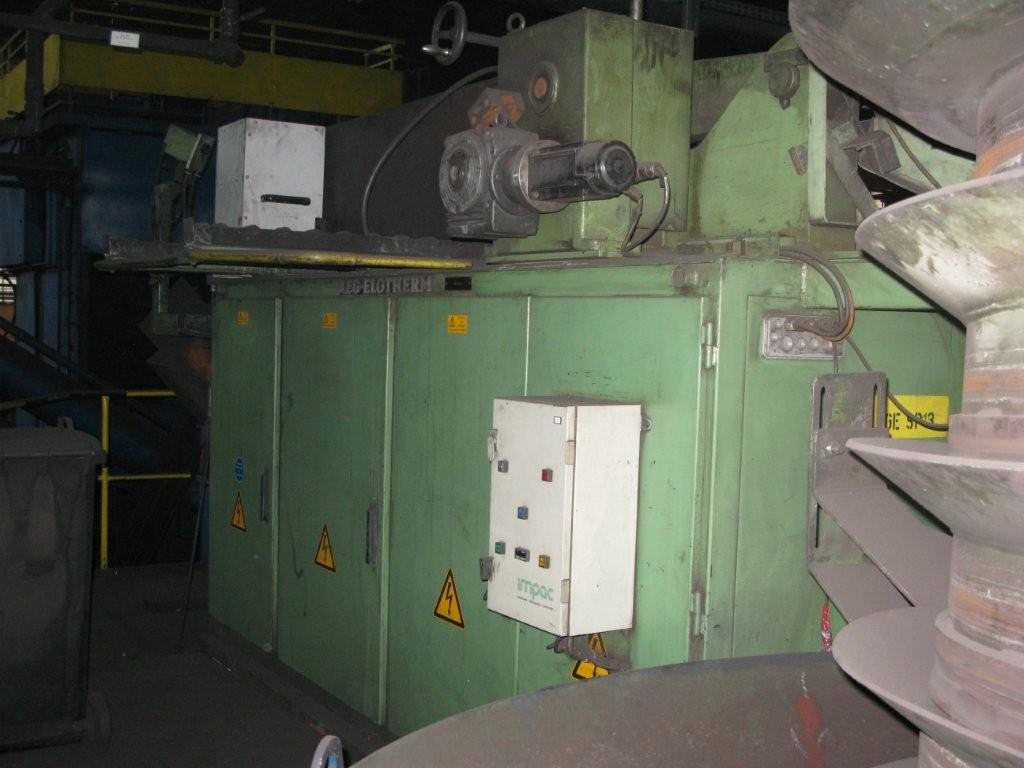

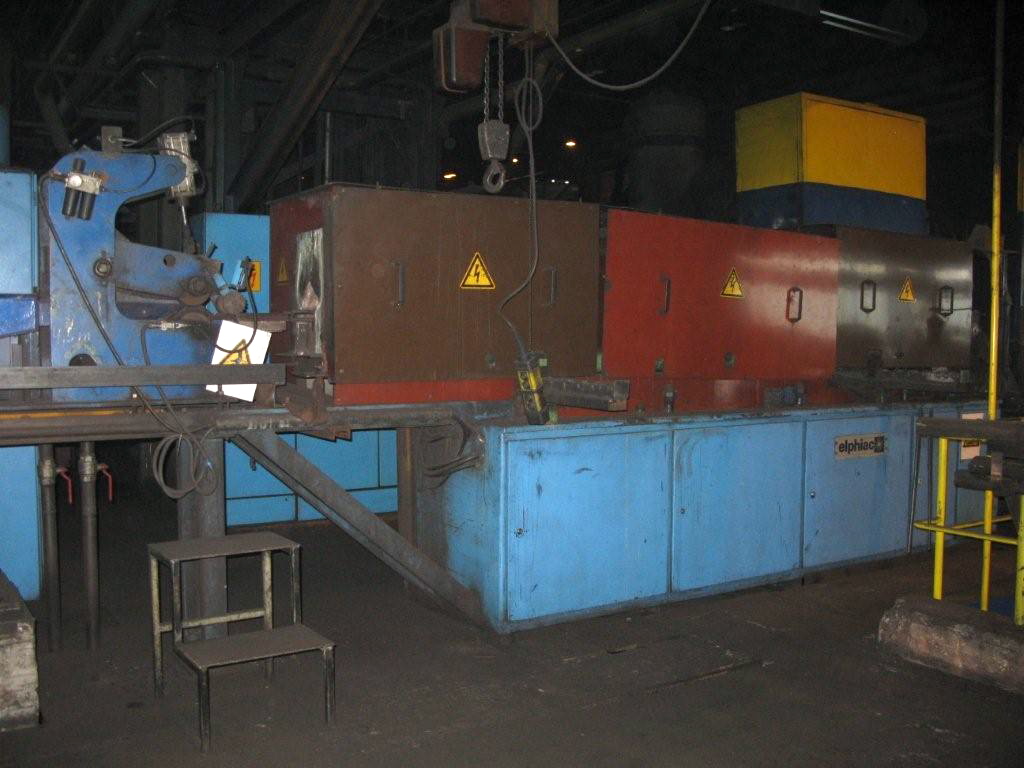

3. Induction Heating Device
Make: Elphiac
Type: Cantenaxe V120
Throughput: kg/h 33000
Power: 1.500kw
4. Double Column Trimming Press
Maker: Smeral
Type: LDO 500A
Built: 1996
Max. Pressure: 500Mp
Stroke of ram: 250mm
No. of strokes: 20/min
Table size: 1580 x 1100mm
Shut height: 680mm
|
|
|
