Maximum across flats hex. nuts.................... 48.0 mm (1.889")
Maximum across flats square nuts.............. 41.0 mm (1.614")
Maximum diameter products........................ 53.0 mm (2.087")
Maximum product height............................... 40.0 mm (1.575")
Minimum product height............................... 13.0 mm (0.512")
Maximum bar diameter raw material........ 38.0 mm (1.496")
Maximum cutoff length.................................. 60.0mm (2.362")
Minimum cutoff length.................................. 15.0mm (0.590")
Diameter feed rollers...................................... 180.0mm (7.086")
Diameter of dies................................................ 90.0mm (3.543")
Height of dies.................................................... 75.0mm (2.952")
Centre to centre distance of dies............... 115.0mm (4.527")
Slide travel.......................................................... 180.0mm (7.087")
Forging pressure (tons)................................. 105.0 mt (115.5 st)
Electric .................................................... 380V-800kVA
Weight................................................................. 18,000 kg
Floor space
Length................................................................... 4,650.0 mm
Width.................................................................... 2,370.0 mm

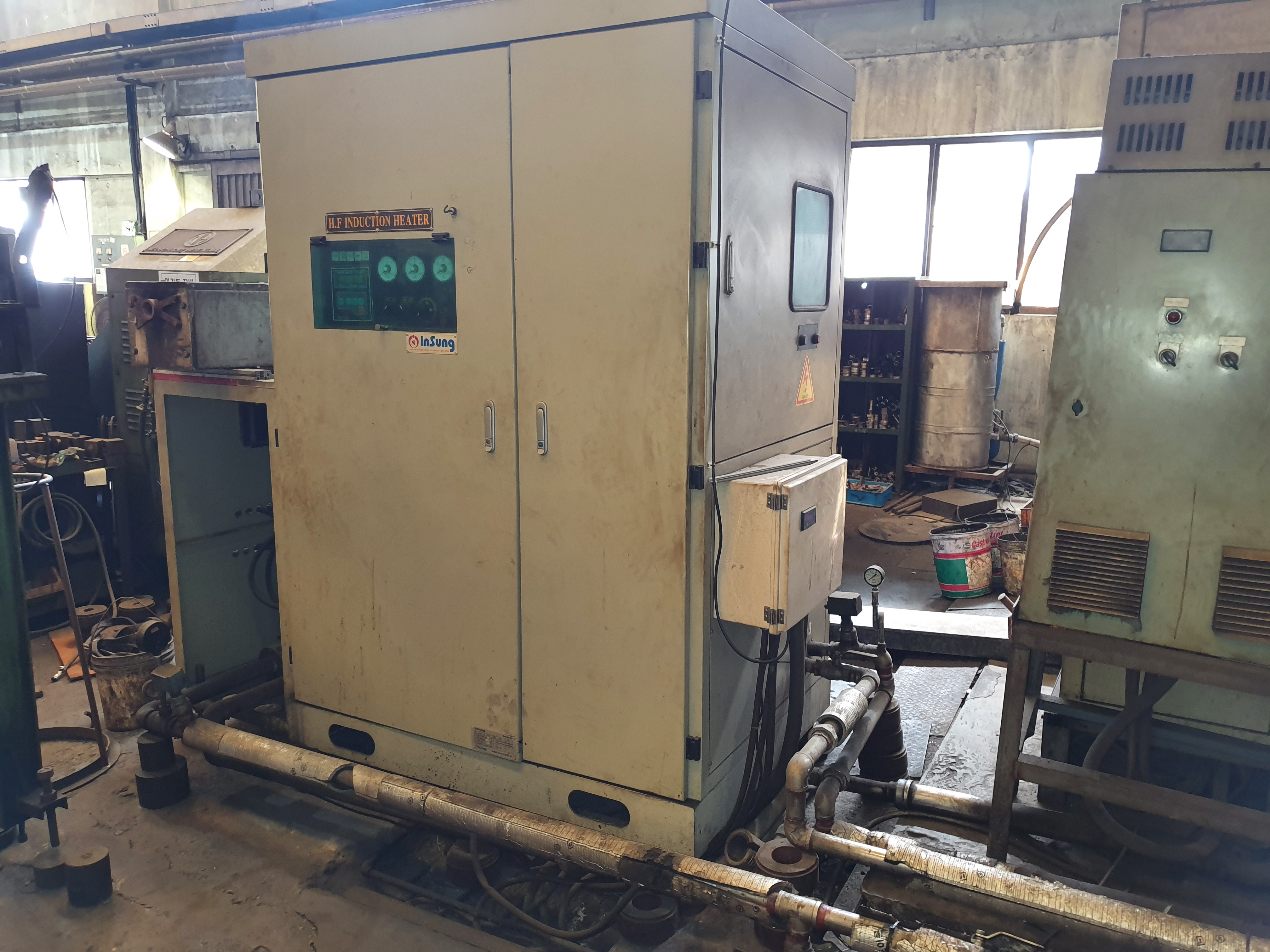

MACHINE COMPLETE WITH INDUCTION HEATER AND BAR RACK
