USED MACHINE QUOTATION

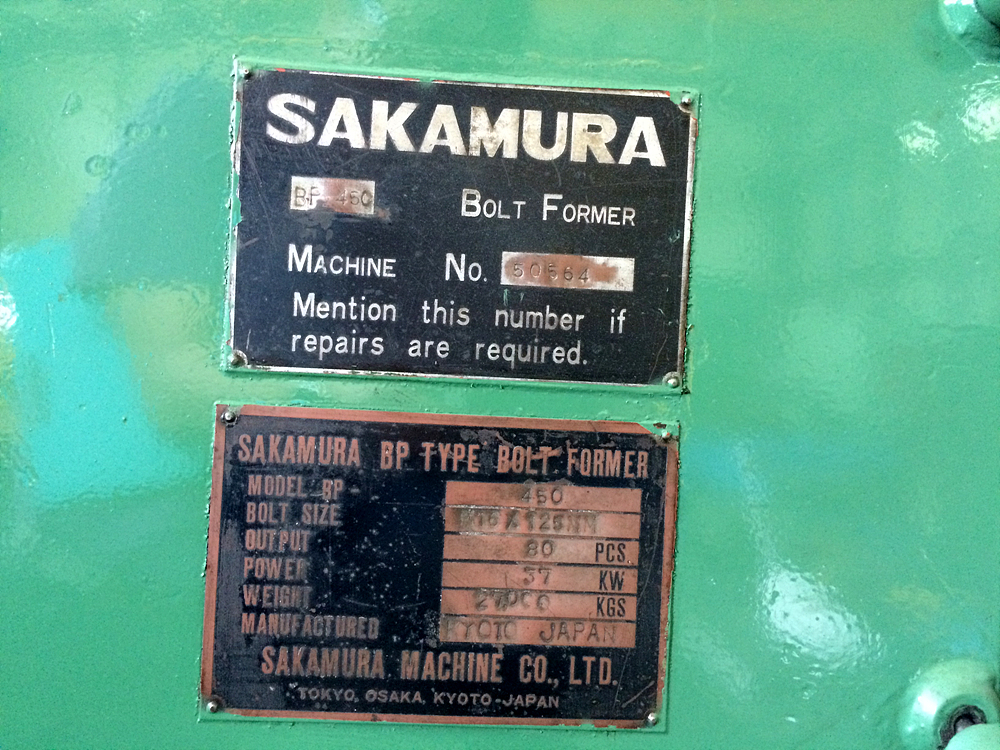

            SAKAMURA MODEL BP-450 5-STATION 4-DIE

                       PROGRESSIVE HEADER, RE: 10668

             Built by................................       Sakamura Machine Co. LTD

             Year......................................       1980's

             Model...................................       BP-450  5-Station, 4-Die

Specifications:

             Cutting Diameter................       18mm

             Forging Diameter ..............       16mm

        Max. Cutoff Length............       175mm

      Max. Shank Lenght............       125mm

             Ram Stroke ..........................      280mm

      Production rate....................      90 ppm

             Floor space...........................      4.8 x 2.9 x 2.0 m

             Weight (approx.).................      27tons

Electrics:

             Main Drive...........................      37.5 kW

      Power Supply.....................       440 volt 3 phase 60 cycles

Condition: Fully Rebuilt in 2016

Price:
