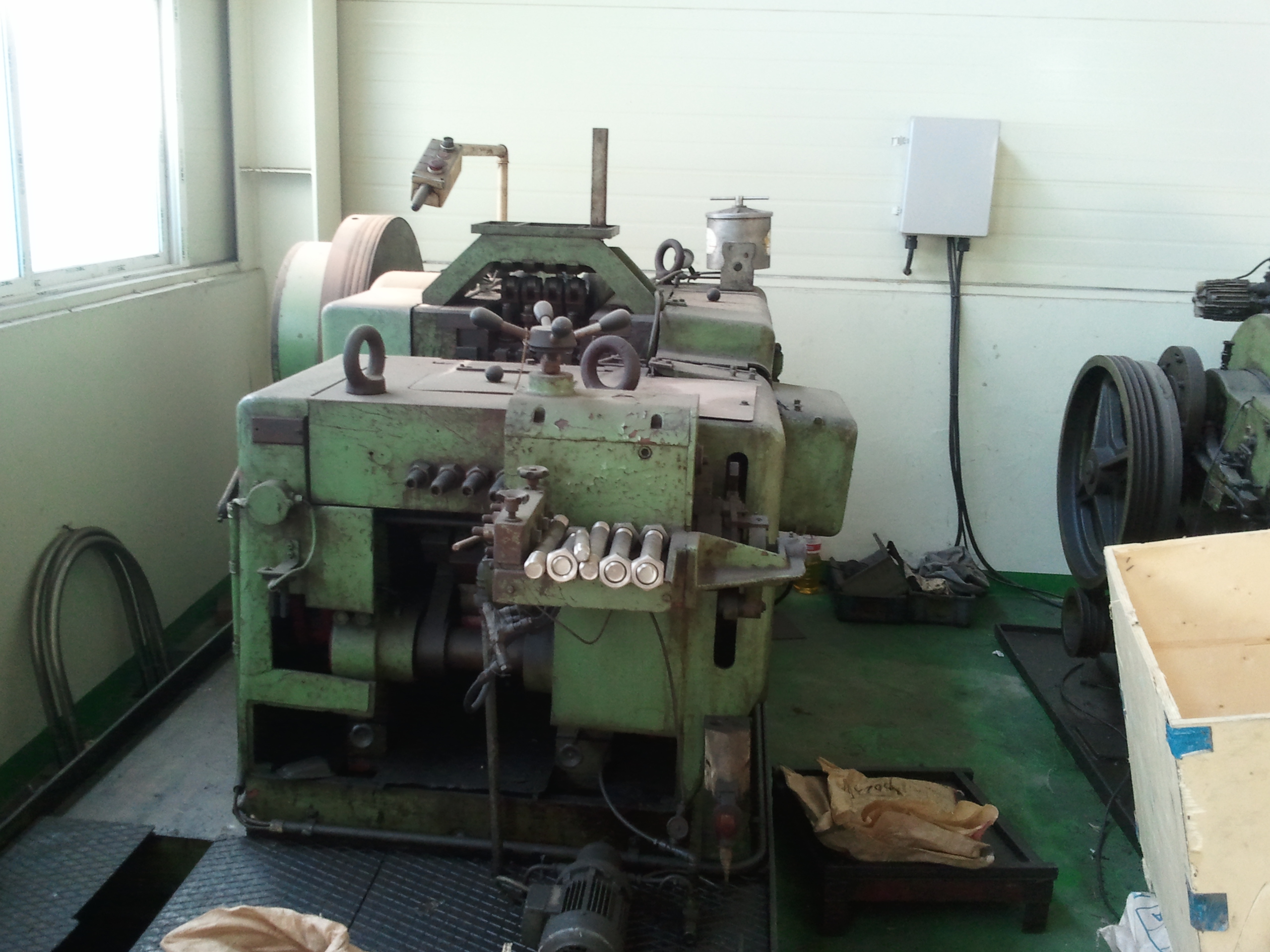

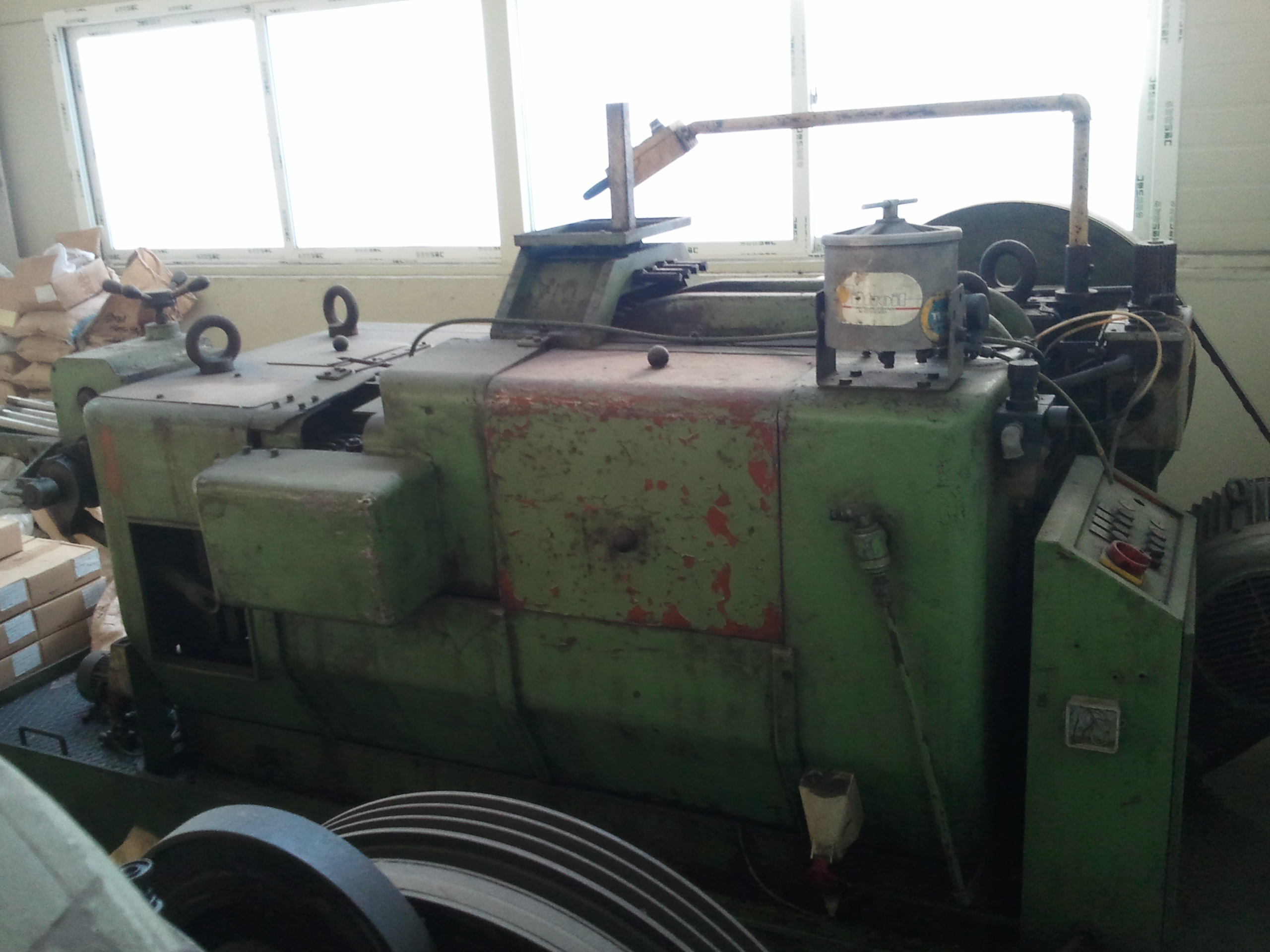

Ceva Model NF-54 4-Die Progressive Heading Machine
Click here for more photos

Reference No. 8173
Manufacturer
Model Ceva NF-54



Production per minute :100

Major Specifications:

Max wire dia capacity : 6.3mm

Min wire die capacity: 2.0mm

Max shanklength : 50.8mm

Min shanklength: 10.0mm

Main motor : 5.5kw/7.5hp

 Floor space: L3,300mm x W1,850mm x H1,400mm

Complete with:



● PKO Attachment

● 10 roll 2 plane straightener

● Air clutch and disc brake

● Pneumatic engagement and disengagement of the feed unit

● Operator’s push button control station





Location:  Korean Warehouse.
