Major Specifications Metric
Standard
Max. Cutoff diameter..................... 24.0 mm......... 0.94"
Max Length kick.............................. 170.0 mm....... 6.7"
Min. Length kick............................. 19.0 mm......... 0.75"
Max. Blank Length.......................... 170.0 mm....... 6.7"
Length of Die block......................... 184.15mm...... 7.25"
Electrics............................................. 220v/3/50cycle
Main Motor...................................... 55.0 kw........... 75.0 HP
Net weight (approx.)...................... 55,000.0 kgs... 122,000.0 lbs
Floor Space
Length............................................... 5.83m............. 19'2"
Width................................................ 3.41m............. 11'3"
Height............................................... 3.44m............. 11'4"
Complete with:
• (5) Full forming dies
• Bolt maker type transfer system &
Universal tpe transfer system
• Hydraulic Tool Clamping
• Trimming in addition to heading
• Blank support

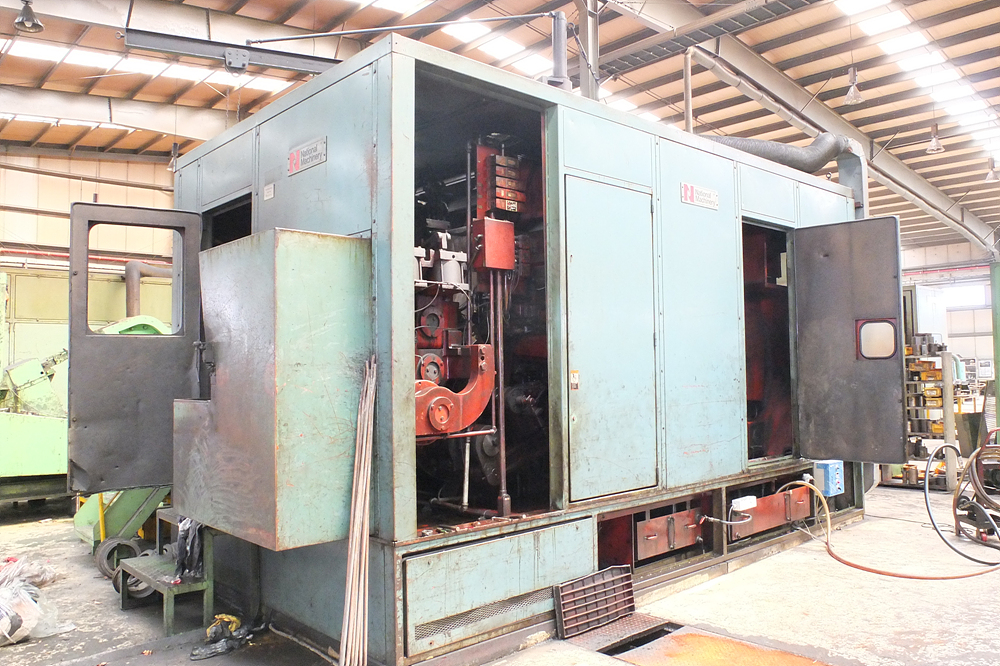

• Sound Enclosure
• Sliding Dies all stations
• Operators work platform
• Part exit conveyor

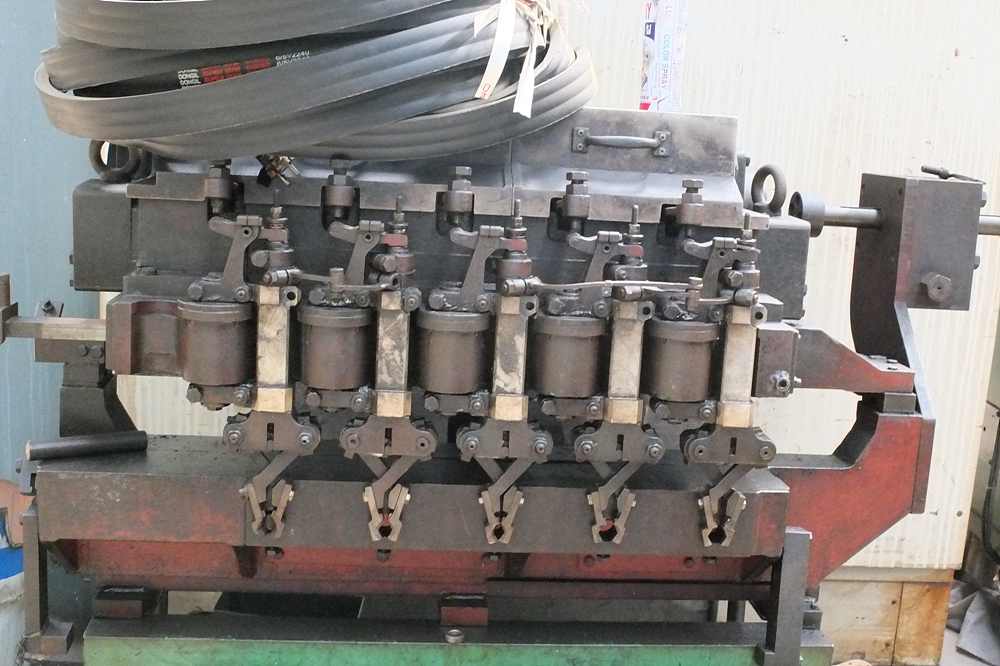

• Spare transfer system
• T.K.O
Condition: .............. Very
Good
중고설비 > 금속성형설비
FC245.pdf (145.3K) [8] DATE : 2013-07-02 10:24:35
